Your Location: Home >> Product >> Experimental Vacuum Freeze Dryer >Basic type >LGJ-10 Lab Freeze Dryer,benchtop,Top Press

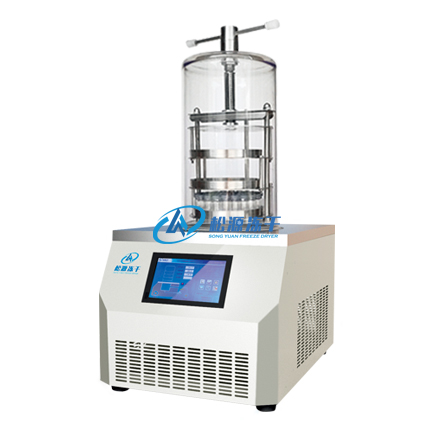

LGJ-10 Lab Freeze Dryer,benchtop,Top Press
  • LGJ-10 Lab Freeze Dryer,benchtop,Top Press
  • LGJ-10 Lab Freeze Dryer,benchtop,Top Press
  • LGJ-10 Lab Freeze Dryer,benchtop,Top Press
  • LGJ-10 Lab Freeze Dryer,benchtop,Top Press

LGJ-10 Lab Freeze Dryer,benchtop,Top Press

Product Category: Basic type
Place of Origin: Made in China
Price: 1700-350000USD/set
· Freeze drying area:0.08㎡
. Material tray dia.:Ф180mm
· ice collecting capacity:3-4kg/24h
· ultimate vacuum:≤5pa
· vial capacity Ф12mm:492pcs
· vial capacity Ф16mm:279pcs
· vial capacity Ф22mm:147pcs
  • Description
  • Attributes
  • Parameter
  • Range
  • Related users

  LGJ-10 gland vacuum freeze dryer is widely used in medicine, pharmacy, biology research, chemical industry and food production, etc. After the freeze drying process,a long term preservation is much easier. They can be restored to the original state and mantain their chemical and biological characteristics after being watered.This model is suitable for experiment in laboratory and small amount production ,and it can meet the regular freeze drying requirements of the most laboratories.


  LGJ-10 gland vacuum freeze dryer Main Features
  . All-in-one structure , small size, no external flange, easy to use, no leakage.
  . All materials in contact with the product use inert materials to meet the requirements of the GLP.
  . The cold trap andconsole are made of stainless steel, which is anti-corrosion and easy to clean.
  . All stainless steel inflated /water release valveis designed and producedby our company,which is safety,anti-corrosion, no leakage.
  . With sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.
  . Patented gas diversion technology, and strong iceholding ability.
  . World- knownbrand compressors, high efficiency, long life, low noise.
  . Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.
  . Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.
  . Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.
  . Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.


LGJ-10 gland vacuum freeze dryer Technical parameters:

freeze drying area

0.08

tray dia.

Ф180mm

No. of tray

3pcs

tray spacing

70mm

cold trap temperature

≤-56℃optional ≤-80℃

cold trap dept

140mm

cold trap dia.

Ф215mm

ice collecting capacity

3-4kg/24h

pumping speed

2L/S

ultimate vacuum

≤5pa

power

970w

weight

41kg

overall dimensions

615×450×370mm

-80℃ overall dimensions

850×680×405mm

drying chamber size

Ф260×490mm

cooling mode

wind cooled

defrosting mode

air cooled

tray capacity

0.8Lthickness 10mm

loaded vials



Ф12mm

492pcs

Ф16mm

279pcs

Ф22mm

147pcs


  LGJ-10 gland vacuum freeze dryer optional accessories and functions
  ·cold trap temperature -80℃
  ·vacuum pump anti-returned oil device
  ·cold trap electrical heat defrosting
  ·oil mist filter system
  ·imported vacuum pump
  ·non-standard customized


  LGJ-10 gland vacuum freeze dryer Applications
  This modelis not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. Whenthe materialsare ready for freeze-drying, theyareput into in the vial, then begin freeze drying after the vials' lidscovered untightly.Thecapping devicecompactsthe vials' lids to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.


  LGJ-10 gland vacuum freeze dryer Packing list
  · main unit ×1
  · vacuum pump×1
  · drying shelf×1
  · drying chamber×1
  · sample containers Φ180mm×3
  · pre-freeze shelf×1
  · user's manual ×1
  · warranty card ×1
  · product certification×1
  · other accessories

  LGJ-10 gland vacuum freeze dryer Main Features

  . All-in-one structure , small size, no external flange, easy to use, no leakage.
  . All materials in contact with the product use inert materials to meet the requirements of the GLP.
  . The cold trap and console are made of stainless steel, which is anti-corrosion and easy to clean.
  . All stainless steel inflated /water release valve is designed and produced by our company, which is safety, anti- corrosion, no leakage.
  . With sample pre-frozen function, large cold trap opening, no inner coil,and low temperature refrigerator is needless.
  . Patented gas diversion technology, and strong ice holding ability.
  . World- known  brand compressors, high efficiency, long life, low noise.
  . Well-known brand vacuum pump with a high pumping speed to achieve a higher ultimate vacuum.
  . Vacuum pump protection function can set the cold trap temperature to protect the vacuum pump life.
  . Professionally designed FD-LAB freeze-drying machine control system + SH-HPSC-I modular controller with high reliability and stability.
  . Intelligent data recording system can real-time record and display the cold trap temperature curve, sample temperature curve, vacuum curve.

LGJ-10 gland vacuum freeze dryer  Technical parameters:

freeze drying area

0.08

tray dia.

Ф180mm

No. of tray

3pcs

tray spacing

70mm

cold trap temperature

≤-56℃optional ≤-80℃

cold trap dept

140mm

cold trap dia.

Ф215mm

ice collecting capacity

3-4kg/24h

pumping speed

2L/S

ultimate vacuum

≤5pa

power

970w

weight

41kg

overall dimensions

615×450×370mm

-80℃ overall dimensions

850×680×405mm

drying chamber size

Ф260×490mm

cooling mode

wind cooled

defrosting mode

air cooled

tray capacity

0.8Lthickness 10mm

loaded vials



Ф12mm

492pcs

Ф16mm

279pcs

Ф22mm

147pcs



LGJ-10 gland vacuum freeze dryer optional accessories and functions

·cold trap temperature -80℃
·vacuum pump anti-returned oil device

·cold trap electrical heat defrosting
·oil mist filter system
·imported vacuum pump
·non-standard customized

LGJ-10 gland vacuum freeze dryer Applications

This model is not only suitable for the freeze drying of bulk (liquid, pasty, solid) conventional materials, but also suitable for the drying of the vials materials. When the materials are ready for freeze-drying, they are put into in the vial, then begin freeze drying after the vials' lids covered untightly. The capping device compacts the vials' lids to prevent secondary pollution, re-adsorb water, and facilitate long-term storage.
