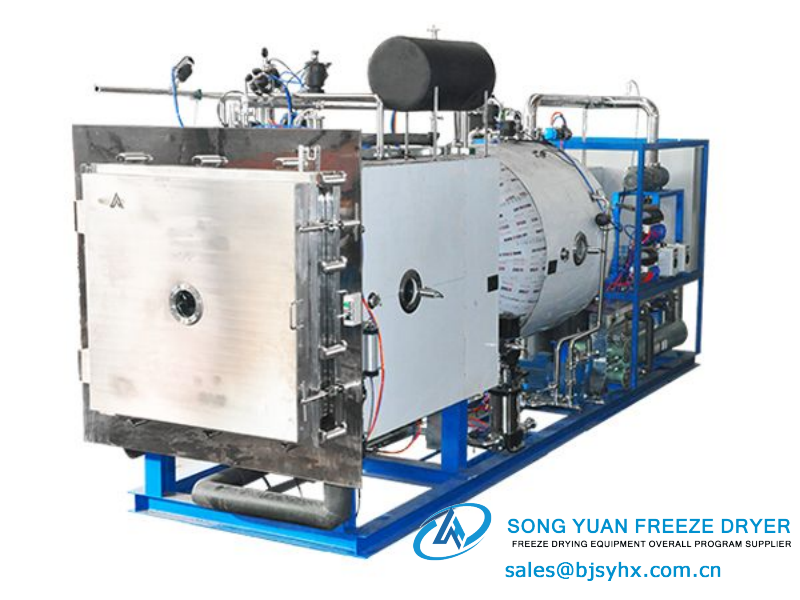

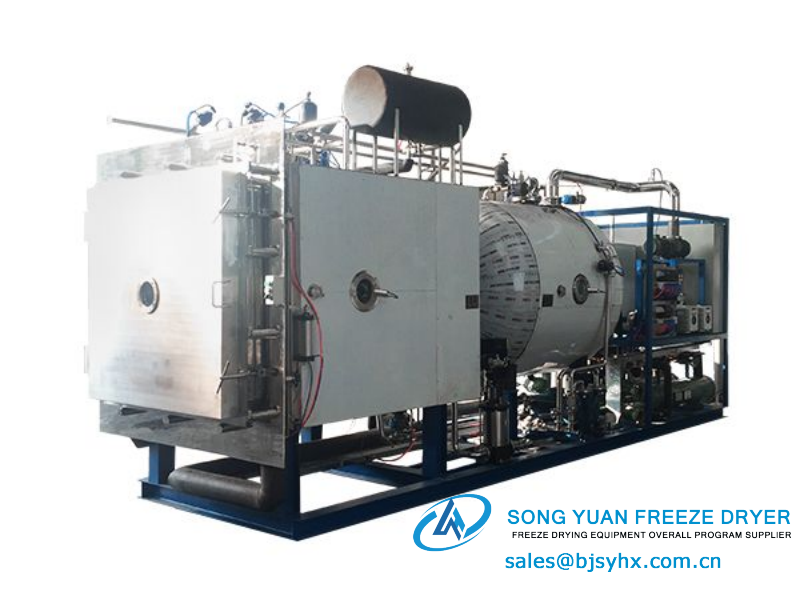

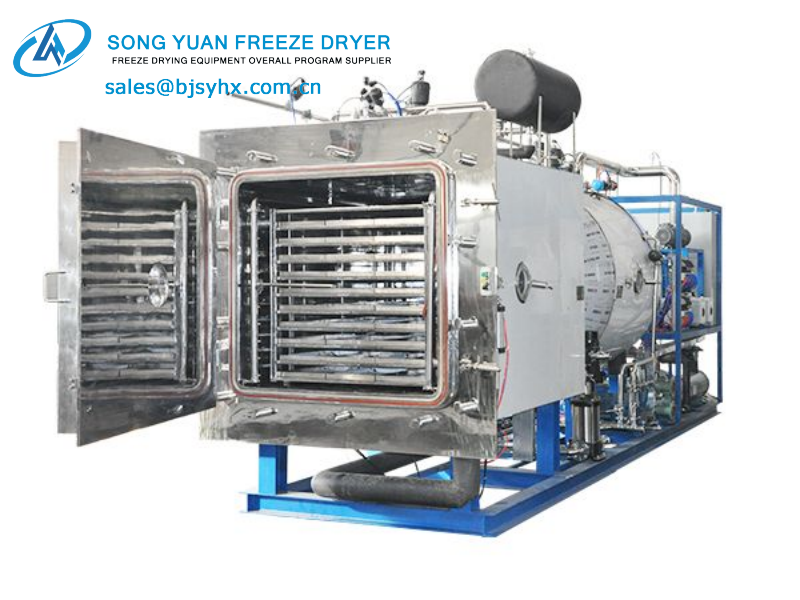

GZLZ 1-50 sterile preparations CIP+SIP freeze dryer series are widely used in medical field, such as blood products, vaccines, biological products, and chemical medicines, especially western medicine field. This series GZLZ 1-50 sterile preparations CIP+SIP freeze dryer are used in many large-scale pharmaceutical factories. In terms of injections, drug quality can be improved and storage time can be extended through freeze drying.
GZLZ 1-50 sterile preparations CIP+SIP freeze dryer Technical parameters
| models parameters |
unit | GZLZ-1 | GZLZ-2 | GZLZ-3 | GZLZ-5 | GZLZ-10 | GZLZ-15 | GZLZ-20 | GZLZ-30 | GZLZ-50 |
| freeze dryer area | m2 | 1.15 | 2.16 | 3.24 | 5.2 | 10.5 | 15 | 20.2 | 29.7 | 51.3 |
| shipping weight (thickness 10mm) |
L | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | 500 |
| shelf number | layer | 4+1 | 4+1 | 6+1 | 7+1 | 7+1 | 10+1 | 11+1 | 11+1 | 19+1 |
| shelf dimensions | mm | 600*480 | 600*900 | 600*900 | 750*1000 | 990*1520 | 990*1520 | 1210*1520 | 1500*1800 | 1500*1800 |
| shelf spacing | mm | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| temp. range | ℃ | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 |
| ice collecting capacity | kg/B | ≥20 | ≥40 | ≥60 | ≥100 | ≥300 | ≥300 | ≥400 | ≥600 | ≥1000 |
| cold trap temp. | ℃ | ≤-75 | ≤-75 | ≤-75 | ≤-75 | ≤-75 | ≤-75 | ≤-75 | ≤-75 | ≤-75 |
| cooling mode | - | water cooled | water cooled | water cooled | water cooled | water cooled | water cooled | water cooled | water cooled | water cooled |
| defrosting mode | - | water soaked | water soaked | water soaked | water soaked | water soaked | water soaked | water soaked | water soaked | water soaked |
| ultimate vacuum | pa | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| power | kw | 18 | 21 | 24 | 25 | 58 | 80 | 96 | 120 | 150 |
| dimenisons (L*W*H) |
m | 2500*1100*2000 | 2500*1300*2000 | 2800*1200*2500 | 4000*1500*2500 | 6700*1800*3500 | 6500×2300×3600 | 7400*2100*3700 | 6500*2400*3800 | 7500*2400*4600 |
| vialsΦ22 | piece | 2460 | 4608 | 6912 | 11648 | 22932 | 34398 | 45045 | 64449 | 111321 |
| vials Φ16 | piece | 4788 | 8960 | 13440 | 22540 | 42966 | 64449 | 84843 | 129789 | 224181 |
| power | kg | 1500 | 2600 | 2800 | 5000 | 7000 | 8000 | 11000 | 15000 | 26000 |
| vapor consumption | kg/h | 60 | 80 | 100 | 130 | 200 | 230 | 280 | 380 | 500 |
| inpouring water volume | l/min | 60 | 75 | 90 | 120 | 160 | 200 | 230 | 280 | 400 |
GZLZ 1-50 sterile preparations CIP+SIP freeze dryer Main features
● Theshelves are made with unique patented technology, high pressure resistance, high flatness, and good temperature uniformity.
● The coolingspeed can be controlled throught The freeze-drying curve optimization control technology in the pre-frozen phase, and at the same time, the sample heatingspeed and the current vacuumvalue also can be controlledin the sublimation and analytical drying stages.
● The patented gas diversion design and control technology ,strongicecollecting capacityand high drying efficiency.
● The unique dual-channel sealing technology of the mobile + fixed dual-channel door seals sterilizes the stationary silicone rubber while steam sterilizing.
● Vacuum adjustment during drying operation to avoid foaming and blowing of special materials and improve drying efficiency.
● Industrial-grade embedded touch screen + dedicated SH-HPSC-IV modular controller, stable and reliable system, high control accuracy.
● The professionally designed LYO-CONTROL control system can save multiple sets of process . At the same time, the process can be adjusted in real time during the drying process to improve the process optimization rate.
● Flexible manual + automatic control mode, the manual for groping process, and theautomatic for batch production.
● The powerful LYO-MEGA host computer control system can record and save the operating data, curves and alarm records for ten years to improve the traceability of products; at the same time, it is convenient for observation, operation and fault diagnosis.
● User grades and passwords can be set, and operations can be decentralized to meet GMP-related requirements.
● The non-stardarded can be customized as requested.
GZLZ 1-50 sterile preparations CIP+SIP freeze dryer Technical parameters
| models parameters |
unit | GZLZ-1 | GZLZ-2 | GZLZ-3 | GZLZ-5 | GZLZ-10 | GZLZ-15 | GZLZ-20 | GZLZ-30 | GZLZ-50 |
| freeze dryer area | m2 | 1.15 | 2.16 | 3.24 | 5.2 | 10.5 | 15 | 20.2 | 29.7 | 51.3 |
| shipping weight (thickness 10mm) |
L | 10 | 20 | 30 | 50 | 100 | 150 | 200 | 300 | 500 |
| shelf number | layer | 4+1 | 4+1 | 6+1 | 7+1 | 7+1 | 10+1 | 11+1 | 11+1 | 19+1 |
| shelf dimensions | mm | 600*480 | 600*900 | 600*900 | 750*1000 | 990*1520 | 990*1520 | 1210*1520 | 1500*1800 | 1500*1800 |
| shelf spacing | mm | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 | 80 |
| temp. range | ℃ | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 | -50~+70 |
| ice collecting capacity | kg/B | ≥20 | ≥40 | ≥60 | ≥100 | ≥300 | ≥300 | ≥400 | ≥600 | ≥1000 |
| cold trap temp. | ℃ | ≤-75 | ≤-75 | ≤-75 | ≤-75 | ≤-75 | ≤-75 | ≤-75 | ≤-75 | ≤-75 |
| cooling mode | - | water cooled | water cooled | water cooled | water cooled | water cooled | water cooled | water cooled | water cooled | water cooled |
| defrosting mode | - | water soaked | water soaked | water soaked | water soaked | water soaked | water soaked | water soaked | water soaked | water soaked |
| ultimate vacuum | pa | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 | ≤1 |
| power | kw | 18 | 21 | 24 | 25 | 58 | 80 | 96 | 120 | 150 |
| dimenisons (L*W*H) |
m | 2500*1100*2000 | 2500*1300*2000 | 2800*1200*2500 | 4000*1500*2500 | 6700*1800*3500 | 6500×2300×3600 | 7400*2100*3700 | 6500*2400*3800 | 7500*2400*4600 |
| vialsΦ22 | piece | 2460 | 4608 | 6912 | 11648 | 22932 | 34398 | 45045 | 64449 | 111321 |
| vials Φ16 | piece | 4788 | 8960 | 13440 | 22540 | 42966 | 64449 | 84843 | 129789 | 224181 |
| power | kg | 1500 | 2600 | 2800 | 5000 | 7000 | 8000 | 11000 | 15000 | 26000 |
| vapor consumption | kg/h | 60 | 80 | 100 | 130 | 200 | 230 | 280 | 380 | 500 |
| inpouring water volume | l/min | 60 | 75 | 90 | 120 | 160 | 200 | 230 | 280 | 400 |
